NS3000 EPBX industrial graded multimedia digital SPC switching system is an integrated communication platform built on NS1000 system but with enhanced performance and features. Apart from the general SPC switching system functionality, this system has superb audio-video multimedia dispatching functions, which the coordinated use with network audio-video applications and intelligent terminal products not only can improve work efficiency and experience, but also better realizes data sharing and information exchange, streamlining the work process.
The various innovative features of NS3000 EPX industrial graded multimedia digital SPC switching system has enable adaption to new situation collaborative dispatching across regions and many departments. It especially applies to large scale mine, factory workshops, container terminals, electric power engineering, enterprise call center platform, star hotels and entertainment venues.EPBX Full Functions
■ Extension management，intelligent switchboards，conferencing systems，address book，voicemail，advanced settings，summary after call，call center，system surveillance，system settings and so on
Basic Dispatching Functions
■ Includes calls、SMS、broadcast、audio playback、call break-in、call disconnect、call monitor、call pick-up、transfer、group call、SMS group sending、roll call and so on
Terminal Status Surveillance
■ There is real-time status display of all terminals, whether it is calling, idle, ringing, busy and so on.
By one click, the terminal can be monitored, disconnected, intruded, transferred and so on.
General Events
■ Users can start and record such events as conferences and broadcasting through the general event mechanism, while the various activities ranging from sending SMS to conference calls, can be handled individually according to user needs.
Emergency Response
■ In case of significant events, users can make use of the emergency procedures to achieve the purpose of “one-key alarm”.
Teleconferencing
■ Dispatchers can hold conference call through dispatching console and in the control room manipulate users’ conservation like “silence”, “kick-out”, “invitation” and so on.
Call Record
■ All call history and call recording of users are saved in NS3000 system and the voice messages can be retrieved through the dispatching console.
■ Operation System：Asterisk

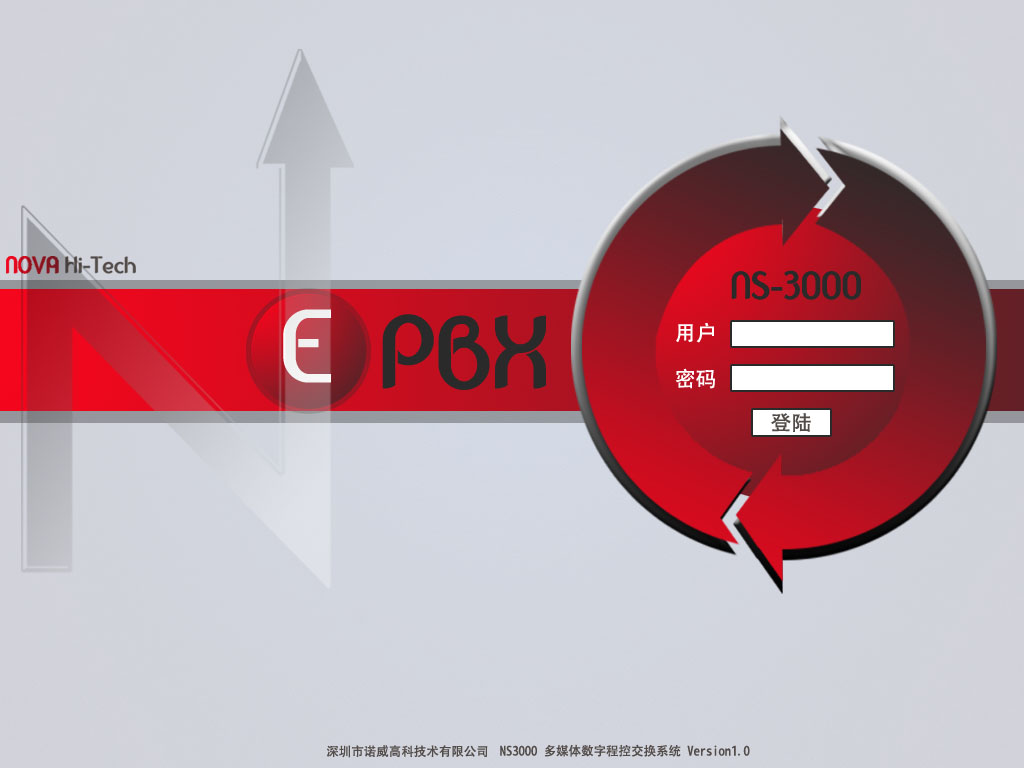

■ Operation Interface：WEB page management
■ VOIP protocol：SIP2.0 supported
■ Support speech coding：723,gsm,ulaw,alaw,g726,adpcm,slin,lpc10,g729,speex,ilbc,g722
■ Support video coding：h261,h263,h263p,h264
■ Registrant number support：3000
■ Concurrency support：200-route concurrency
■ Support FXO：external FXO gateway
■ Support E1：16 E1 as maximum for the host while external connection with E1 relay gateway is also possible for further extension.Converged Communication
■ support integrated dispatching communication built on wireless 3G/4G /WIFI and cabled IP/PSTN.
Support standard SIP protocol while the terminal is highly extensible.
■ all SIP IP terminals that support standard SIP protocol as well as Paging and Intercom, can be integrated into the system for unified dispatching.
Reliability
■ support quantum hot standby, double insurance
convenient and easy operation
■ Through Web remote management, EPBX system configured, together with large scale dispatching console and tablets, offers straight-forward dispatching.
Unbounded by geography
■ According to management needs, dispatching communication between any points above the ground or under, is unhindered.
NS3000 EPBX industrial graded multimedia digital SPC switching system applies to:
■ Large scale mine
■ Factory workshops
■ Container terminals
■ Electric power engineering
■ Enterprise call center platform
■ Star hotels and entertainment venues
Recommended application with the following：
RP-80 SIP WIFI Rugged Phone NB800 SIP IP Intercom NDC Dispatch System
