NB800 SIP Intercom
-
- Introduction
- Features
- Parameters
- Advantage
- Application

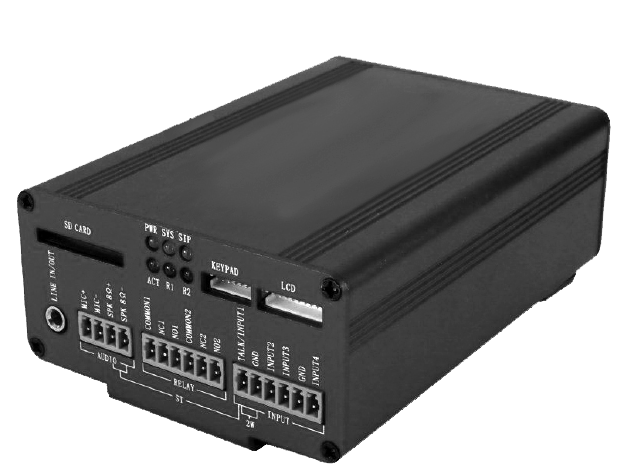

NB800 SIP Intercom IP broadcast terminal is self-innovated by NOVA，based on SIP protocol，simple installation and easy operation. It can be widely applied to mines, factories, forestry, electric power, wharf, parking lots and so on. Combined use with EPBX system of NOVA NS series, emergency broadcast notification ，regular broadcast，voice broadcast and so on can be made. Build-in SD card can remote broadcast MP3 notice of high quality, music and other audio files. Build-in echo cancellation makes sound quality superior. The product adopts SIP 2.0 protocol, broadcast terminal package broadcast，group call，the white list and so on can be set through simple WEB page design. In the master control room users can use IP phone or SIP soft phone to dial the extension number of the radio terminal for one-way or two-way conversation with a single radio terminal. Group call can also be made to a group of radio broadcast terminal group through dispatching system.■ Event trigger: operates corresponding to user customized events, for example, open the relay when there is SMS received; send SMS or make a call to the specified terminal and so on.
■ White list：set to allow only default users to call in.
■ Support auto-answer
■ Volume adjustment: support web page volume settings
■ Speed dial button：10 groups
■ Support relay settings
■ Support settings for relay work sessions：for example: work from Monday to Friday while closed for the rest of the days
■ Network：support DHCP,STATIC,PPPOE，support VLAN，support PPTP VPN
■ SIP protocol：support 6 SIP accounts concurrent online
■ DTMF：support RFC2833，inband，sip info
■ Support VOICE QOS
■ Support white list download：TFTP,FTP,HTTP
■ Support auto-configuration download：TFTP,FTP,HTTP
■ Support auto-upgrade：TFTP,FTP,HTTP■ Built-in 3W speakers
■ Support external amplifiers and speakers
■ Support 4 buttons
■ Support 12-bit keyboard
■ Support WAN port and LAN port
■ Support router mode and bridge mode
■ Support external LCD receive and display SIP SMS
■ 12V1A electric power
■ Support external battery power：6V4A
■ Support SD card
■ The enclosure can be customized according to customer needs.Docking with multiple standard SIP protocol terminals
■The product can be flexibly used with such a variety of SIP terminals as SIP WIFI phones， SIPIP cameras and IP landlines.
IP phone
■There is a numeric keyboard for the product，through which users can make a call by dialing the extension numbers.
Defining Function Keys
■ Respectively 4 function buttons can be set. In case of emergency, users can press the corresponding button to call the event-related personnel.
Support IP Address Call
■ Under conditions with no EPBX，the terminal can also be contacted by using IP phone through dialing IP address.
Support Building Portal Intercom
■The product has event trigger settings and can be used with access requirement.
Support parking lot surveillance system
■ Along with the use of SIP digital camera, the product can be served as an emergency at parking lot.
High definition tone quality
■ The high quality of sound far excels other broadcast systems.
Custom Appearance
■ Users can customize the enclosure used indoor or outdoor as well as the different ways of installation, according to different scenarios requirements,NB800 SIP Intercom IP broadcast terminal applies to：
■ Building portal intercom
■ Parking lot emergency call
■ Digital mine emergency broadcast
■ Electric power engineering digital intercom broadcast
■ Port digital broadcast
■ Forestry emergency
■ Plant emergency notification
Recommended application with the following products：
RP-80 SIP WIFI Rugged Phone
EPBX-3000 NDC Dispatch System
