NDC industrial-grade visualized dispatch and command systems are of great capacity system software innovated on the foundation of NS3000 EPBX multimedia digital SPC switching systems. With aggregated audio and video dispatching, the ease and convenience of dispatch operation are improved from various dimensions. The dispatch system effectively integrates all kinds of network communication device systems, including broadcasting systems, video conferencing systems, audio-video surveillance systems, voice communication systems and mobile video systems, forming a huge network communication system of multiple-links and high reliability. Its visualized graphical dispatch interface allows the status of every end-users leap to the eye. Dispatchers can directly use the one-click voice-call and video dispatching, providing users with dispatch operation of high efficiency.
The flexible architecture design enables tailor-made system configuration, making possible the cooperation with big size dispatch platform, TV wall or a tablet, SIP digital video cameras, SIP digital broadcasting, SIP WIFI phone, SIPIP video phone and so on, enhancing both the flexibility and means of scheduling.
Quantum hot standby system is of extreme stability. It can also configure with a variety of communication interfaces, which support multiple signaling protocols, rendering more flexible application. Main applications include Emergency Command Center, duty room, first-aid center, digital mine, intelligent traffic system and so on.General Dispatch Functions
■ Demolition
Users can compulsorily remove two extensions in progress.
■ Interpolation
Dispatchers can compulsorily interpolate between the call for two, forming 3 way calling.
■ Broadcasting
Dispatchers can broadcast extension or groups.
■ Audio Playback
Dispatchers can upload audio files through dispatching console and extensions for the playback.
■ Monitoring
Dispatchers can monitor users’ conversation..
■ Call Transfer
Dispatchers can switch calls to other extensions or mobile phones according to users’ needs.
■ Call Pickup
Dispatchers can help receive calls unanswered by users.
■ Roll Call
Dispatchers can take extension roll call. Meanwhile extensions will ring. Whether the extension is answered or hung up, the roll call request is counted as replied and the green light on the user’s extension will be on, signifying roll call successful.
Other Functions
■ General Events
Users can start and record such events as conferences and broadcasting through the general event mechanism, while the various activities ranging from sending SMS to conference calls, can be handled individually according to users’ needs.
■ Emergency handling
In case of significant events, users can make use of the emergency procedures to achieve the purpose of “one-key alarm”.
■ Teleconferencing
Dispatchers can hold conference call through dispatching console and in the control room manipulate users’ conservation like “silence”, “kick-out”, “invitation” and so on.
■ Call Record
All call history and call recording of users are saved in NS3000 system and the voice messages can be retrieved through the dispatching console.
■ Event Log
General events and emergent incidents can be referred to event log for query.
■ System Settings
Users can set the time for broadcasting, content of general events and emergencies, uploading and broadcasting music files, as well as the dispatcher and so on.
■ SMS
Dispatchers can send SMS to extensions or groups through the dispatching console.■ Operating System：WINDOWS 8
■ Operating Interface：WEB Page Management
■ VOIP Protocol: SIP2.0 supported
■ Support for Speech Coding：
723,gsm,ulaw,alaw,g726,adpcm,slin,lpc10,g729,speex,ilbc,g722
■ Support for Video Coding：h261,h263,h263p,h264
■ Registrant Numbers supported：3000 registrants
■ Concurrency support：200 routes
■ FXO support：External FXO gateway allows further extension.
■ E1 supported：16 E1 as maximum for the host while external connection with E1 relay gateway is also possible for further extension.Converged Communication
■ support integrated dispatching communication built on wireless 3G/4G /WIFI and cabled IP/PSTN.
Multimedia Dispatching
■ Support audio-video collaboration
Multi-link Access
■ Support a variety of audio-video communication software and terminals, such as SIP IP video telephones，SIP surveillance cameras、IP telephony、SIP WIFI cell phones、smart video phones、video dispatching client software and so on.
Easy Operation

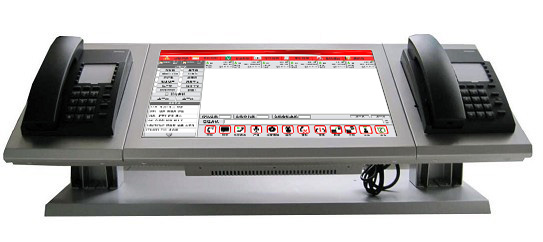

■ With touch screen dispatching console, users can deliver emergency notifications and issue an order the fastest and most effective possible, while the status of the informed can also be intuitively shown.
Mobile Dispatching

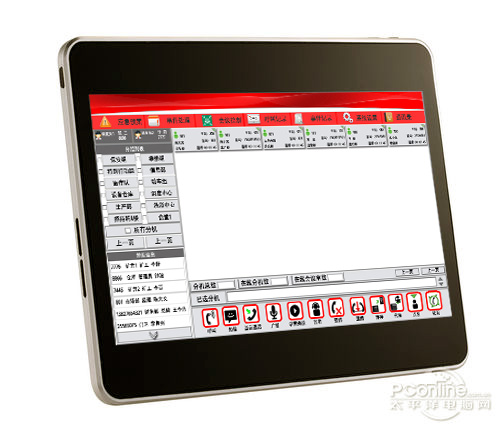

■ Tablets supported, dispatching along the way is possible.
NDC industrial graded visual dispatching system can be applied to
■ Large-scale mines
■ Factory workshops
■ Port terminals
■ Electric power engineering
■ Enterprise call center platforms
■ Star hotels and entertainment venues
Recommended application with the following products:
RP-80 SIP WIFI Rugged Phone
NB800 SIP IP Intercom
RP-T3 Smart Phone
