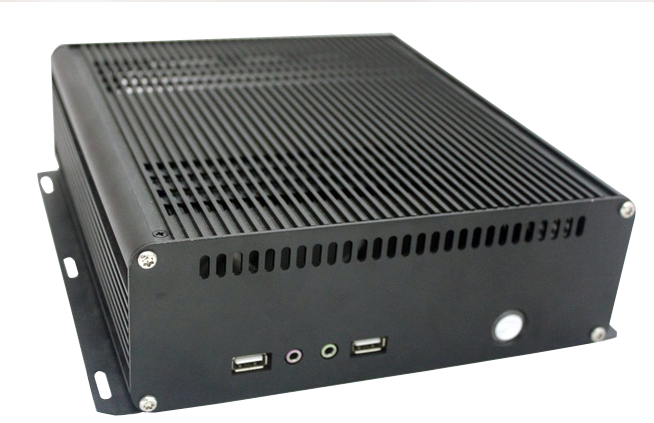

NS5000 MCU video conferencing system is a set of video hybrid decoding software based on client mode. Complete C/S schema，users control the conferencing server through client software. The system not only can be run in the internet or the intranet, but also set to be run in the blending mode of the two. MCU system is resource saving, minimizing demand for network bandwidth. In addition to fluent video of voice interaction, you can also share documents and work together, making remote management the best tool for remote conference and online training.

Audio-video interaction
■ Provide multiparty audio-video conference. At maximum a matrix of 16 grid boxes can be created. Audio-video decoding transmission can be achieved. Support RTSP and RTP.

Desktop Sharing
■ This facilitates documents（PDF,WORD，PPT, etc.）checking as well as other files of different formats among remote multiple users.

Real-time Information
■ Users can raise questions or give advice by entering text messages as record.

Video Conference
■ All sessions are automatically video recorded, which can be playback from the management page. Stored at high compression ratio, the video record is space-saving without reducing resolution.

Access Control
■ The host can set the operation authority of each user，such as the permission to speak, hear the meeting，turn on the screen, type and so on.

Numerous Conference Rooms
■ The number of conference rooms is no limit and users are free to set up conference rooms in the system.

Data Security
■ Every user at the conference room is through the “invitation” by the host who can freely lock or unlock the room, having the complete control of the whole room.

High AVS Compression Ratio
■ The system adopts a unique audio-video compression.

Multiple Docking Modes
■ Support SIP protocol and can docked with soft switch system and IP PBX system.

■ Concurrent calls：20-party video conferencing
■ CPU： E5-2609 2.4GHz
■ Standard hard drive capacity： 2TB
■ Internal hard drive rack： maximum support 4blocks 3.5inches SATA/SAS
■ Network controller： I217LM
■ RAM： 16GB

Powerful Encoding and Decoding Technology
■ Manage hybrid multi-channel audio-video data. Perform efficient and clear codecs，from which the blended output to the terminal display. Support such a variety of terminal types as computers，cell phones, video telephone and so on. Codec and mixing process can also be applied to encoding formats like RTSP and RTP, displaying excellent compatibility.

Speech Engine of High performance
■ This technology ensures the best audio effect under various bandwidth environment.
■ Support codecs at different bit rates（2.15kbps到44kbps）
■ Enhanced dual-channel coding
■ Support G.711、G.723、G.729 protocols
■ Support intelligent bit stream smooth techniques

High Fidelity Audio Mixing Technique
■ The focused optimization of the audio mixing techniques generates clearly distinguishable effects.
■ 32-channel high fidelity audio concurrency，generating mixed audio of the most optimal audio reduction rate and noise elimination effect in the industry.

■ Intelligent algorithm for audio data transmission and the application of QoS ensures the sound output smooth without delay.
■ Audio data optimization algorithm performs impressively good, the continuity of voice can still be guaranteed even under terrible network conditions.
■ Speech mechanism is very flexible, facilitating the conference agenda.

Perfect Audio Processing Technology
■ Especially for conference application, numerous self-innovated functions such as noise suppression（ANS）、echo cancellation（AEC）、gain compensation（GC）are integrated，realizing the resolving of problems relating to audio conference environment by software and ensuring impressive conference sound effect.

Support Full HD Standard Definition Video Images
■ High view full HD video conferencing system supports full HD 1080P video codec, HD video images（1920×1080P）can be very conveniently output to HD TV through the system，rendering the meeting in detail, taking the rag off in high-end application. At the same time, the system also supports the transmission of standard definition video images, satisfying the needs of most users.

Advanced Video Compression Algorithm
■ Mainstream coding techniques as H.264、H.263、MPEG-4，video quality and compression ratio extend and retract freely.
■ Support HD video, images are of high quality, continuous and fluent.
■ Signal transmission at lower bandwidth, saving bandwidth resources.
■ Remarkable fault-tolerant ability, ensuring finer quality even in unstable network environment.
■ Provide image transmission of lower bit rate, more smooth and higher resolution at lower bandwidth
■ Very good anti-interference，smoother image quality
■ Support video hardware compression cards based on H.264 coding. Data collection then no longer consumes large amount of CPU resources.
■ Outstanding network adaption ability，more suitable for the application of the internet and 3G network.

The Complete Application From The Conference Room To The Desktop
■ High view full HD video conferencing system supports video image resolutions from full HD 1920×1080 and D1 to ordinary, clear and vivid pictures，bright full color, with no mosaic and breakage，fully satisfying conference application from the HD video conference room to the desktop. Support resolution adaption technology for video device，allowing free control of image quality. Support bandwidth setting and dynamic adjustment, making things convenient and quick.

Flexible Video Display And Layout Pattern
■ Video conferencing has 25-route concurrency with number of participants unlimited, providing standard、flat out、automatically split screen、L-type、inverse L type、return type、custom layout mode and so on. Video operation supports free floating、embedding、enlarge、shrink、full screen、restore and so on. In addition, it adapts to different dimensions of display device through video fill feature.

More Audio-Video Enhancement
■ Group session application: set up numerous audio-video independent groups in the large conference room; support public group for text and group discussion，realizing the flexible application of video conference room.
■Terminal single user 8-route video input and switch, particularly suitable for the integrated
■ Independent dual display of video images and conference operation and support intelligent memory functions
■ Video loop testing supports loop testing of the whole personnel and the group. The number of loop testing windows, the time and so on, can also be set.
■ Remote control of PTZ and audio-video device、parameter adjustment and support for a variety of standard camera PTZ protocol
■ Support technique that can keep or hide video of the spokesman. Control of the video window is very flexible.

Strong Compatibility
■ Not only can it dock with a variety of systems like satellite communication system, teleconferencing system, SPC switching system, IP PBX system and so on, but also provide users with customized and OEM services，allowing further development by users themselves with SDK we provide.

MCU video conferencing system applies to：
■ Major small and medium sized enterprises
■ Transnational enterprises
■ Conference rooms of star hotels
■ Large factories
