SIP WIFI Rugged Phone
  • Introduction
  • Features
  • Parameters
  • Advantage
  • Application

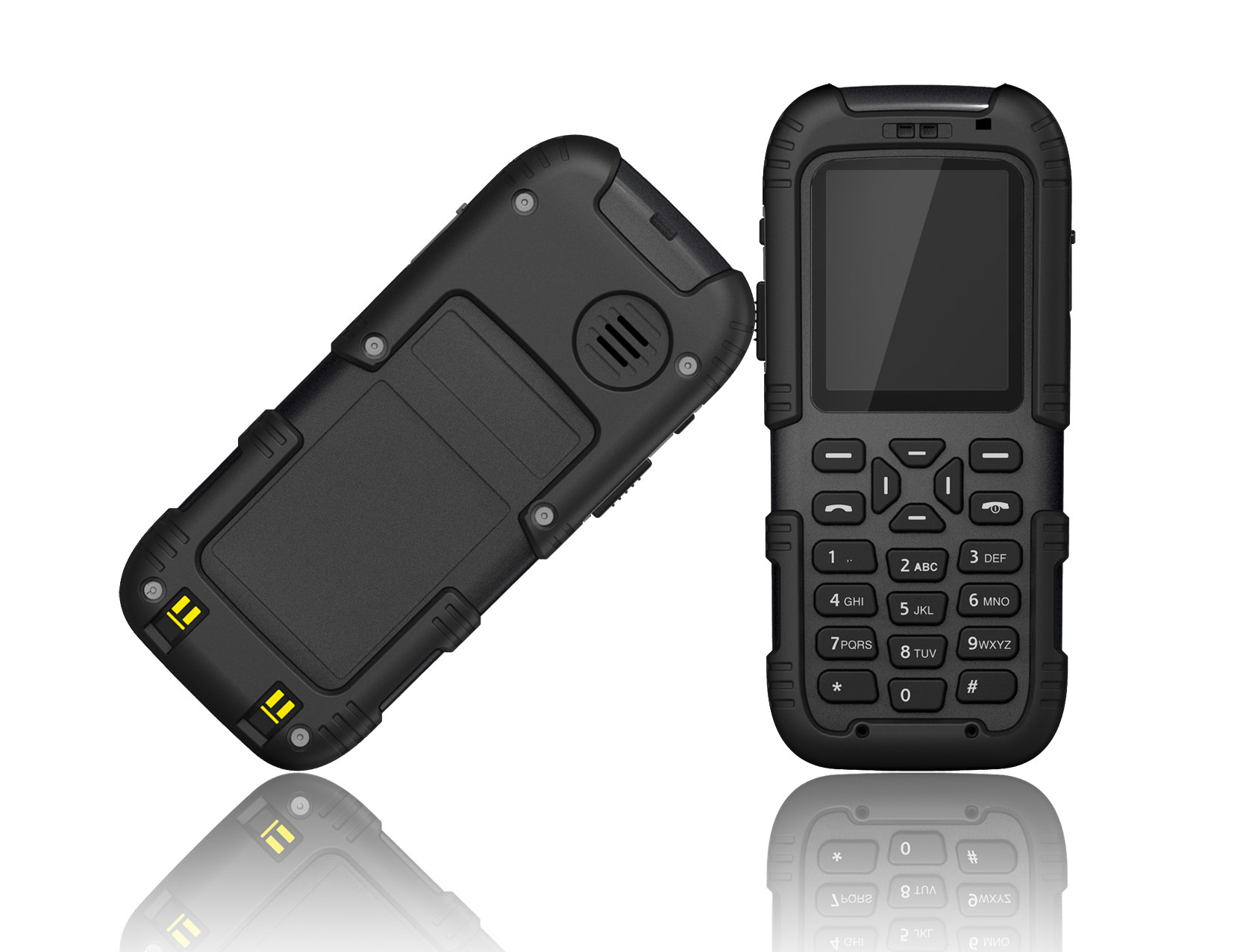

RP-80 rugged phone is a high-performance industrial WIFI cell phone designated for clients from manufacturing plant, petrochemical plant, dock and the coal-mine industry etc. Besides the call and short message services as owned by ordinary cell phones, it also integrates functions of Group Call Talk, One Touch SOS, Self-Organized Network and Assisted Positioning. With the advanced industrial design. The phone satisfies the explosion proofing, dust screening, drop proofing and shock proofing requirements.
VOIP
■ Supporting SIP 2.0 (RFC 3261), good compatibility;
■ Supporting audio coding and decoding: G.711u G.711a G.729A;
■ DSP echo cancellation technology to cancel large-volume echo;
■ high voice quality; short time delay; high stability;
■ Supporting large-volume hands-free call;
■ Supporting caller ID display, call waiting and call forwarding functions

SMS, Phone Book and Call Record
■ Sending and receiving Chinese and English messages;
■ Storing 100 messages in Inbox and Outbox respectively;
■ Supporting Input, Browse and Delete operations; supporting speed dial;
■ Storing 400 name lists with addresses and phone numbers;
■ Displaying phone number in groups;
■ Supporting Search, Input, Browse and Delete operations; supporting speed dial;
■ Storing name, number, address and email information;
■ Storing 20 received calls, missed calls and dialed numbers respectively;
■ Supporting call records deleting or saving; support speed dial.

Configuration and Upgrade
■ Supporting manual configuration of parameters; supporting crypto guard of key parameters;
■ Supporting automatic download of configuration file from Server;
■ Supporting TFTP wireless upgrade of software
Basic Parameters
■ Size:120mm(L)*52mm(W)*22mm(H)
■ Weight: 138g
■ Screen: 1.8 in., TFT LCD
■ Battery capacity: 1700mAh
■ Language: Chinese and English display interface; Chinese and English input
■ Standby time: >120h; talk time: >8h
■ Barrier-free speech range: >400m
■ Lead-free technology; national standard compliance

Wireless Parameters
■ Supporting IEEE 802.11b/g/n
■ Frequency band: 2.4-2.483GHz;
■ Transmit power: 15~17dBm;
■ Receiving sensitivity: >-90dB;
■ Supporting fast Inter-AP handoffs to keep speech fluency;
■ Supporting WEP64, WEP128, WPA and WPA2 encryptions;
■ Supporting DHCP automatic acquisition and static configuration of network parameters.


Protective Design
■ Level of protection: IP54;
■ Optional explosion-proof battery;
■ Moisture and corrosion protection;
■ Satisfying the performance requirement of drop-proof, dustproof and shockproof cell phones

Positioning
■ Cell phone positioning can be realized through the standard interface of the positioning protocol and the  positioning software of upper computer;
■ Parameters such as position update cycle, positioning server and positioning server portcan be set.

Offline Communication
■ Realizing communication between RP-80 cell phones in absence of SIP Server;
■ Supporting SMS, call and intercom under offline mode;
■ Supporting direct dial under offline mode, same as successful SIP registration.

Intercom Function
■ Special intercom key designed (the black key on side face) for convenient use;
■ No server, easy arrangement;
■ Supporting Group Call Talk;
Note: The intercom functions shall be performed in the same network segment.

Push to Alarm
■ Special alarm key designed (the orange key on side face) for convenient use;
■ Press the alarm key, red alarm warning will pop up;
■ Hold on the alarm key, the preset alarm number will be dialed.

Self-Organized Network
■ Supporting self-organized network between cell phones during wireless network paralysis;
■ The barrier-free communication distance under the self-organized network mode is larger than 200m;
■ Supporting SMS, call and intercom;
■ Service occasions recommended: emergency communication under power cut in pit;
■ Near range intercommunication between rescuers.

RP-80 industrial designed SIP WIFI Rugged Phone applies to:
■ Large scale mine
■ Factory workshops
■ Container terminals
■ Electric power engineering
■ Enterprise call center platform
■ Star hotels and entertainment venues

Recommended application with the following：

NS3000 EPBX System
 NB800 SIP IP Intercom NDC Dispatch System
